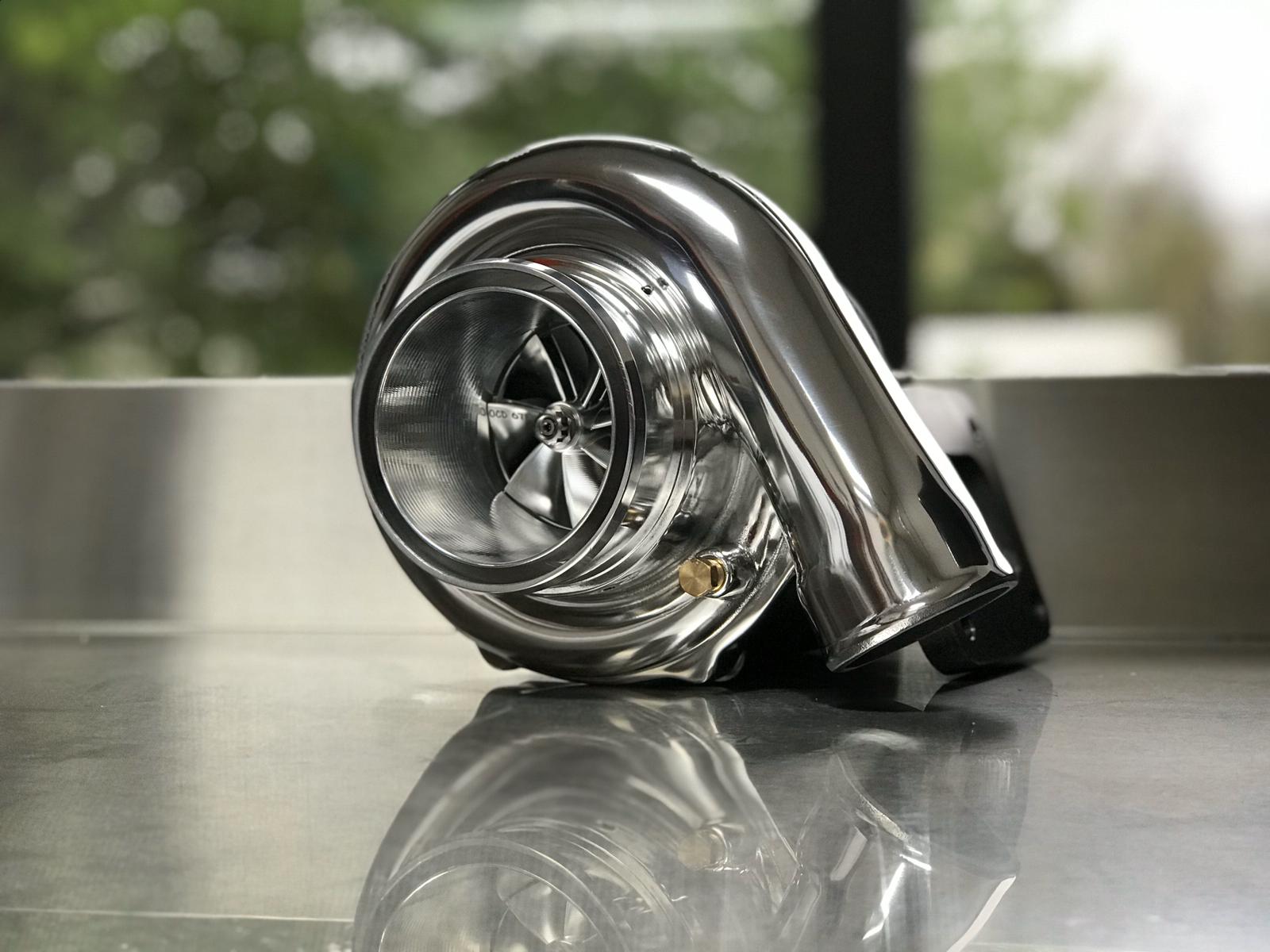

OCD-6751R Turbocharger DBB / JB - ( Polished )

This turbo features a Ocdworks Billet 67mm compressor wheel and a HF 66/62mm Turbine for ultimate power and spool. This unit comes standard with a ported 4" Inlet / 2.5" Outlet Ocdworks compressor housing. A Dual Ball Bearing oil and water cooled CHRA designed to handle high boost operation with ease, water cooling must be used with this turbocharger. The OCD-6751R is fully assembled and VSR balanced in-house. All of our turbochargers come with an industry standard 1 year unlimited mileage warranty.

Specs:

• Compressor Housing: Ocdworks machined compressor cover 4" Inlet / 2.5" Outlet
• Compressor Wheel: Ocdworks Billet 67mm High efficiency compressor wheel
• Bearing Type: Oil & Water Cooled Dual Ball Bearing CHRA (water cooling must be used)
• Turbine Wheel: Inconel 62/66mm turbine wheel
• Oil Feed Fittings Pitch Size: 7/16-24"
• Water Ports Pitch Size : M14 x 1.5
• Warranty: 1 Year/Unlimited Mile

DBB Turbine Housing Options:

• T3 .63 A/R 3" 4-Bolt Outlet
• T3 .82 A/R 3" 4-Bolt Outlet
• T3 .63 A/R 3" V-Band outlet
• T3 .82 A/R 3" V-Band outlet
• T4 .82 A/R 3" V-Band outlet
• Stainless steel V band housing .83
• Stainless steel V band housing 1.01

JB Turbine Housing Options:

• T4 .81 A/R 3" V-Band outlet Open.
• T4 .96 A/R 3" V-Band outlet Open.
