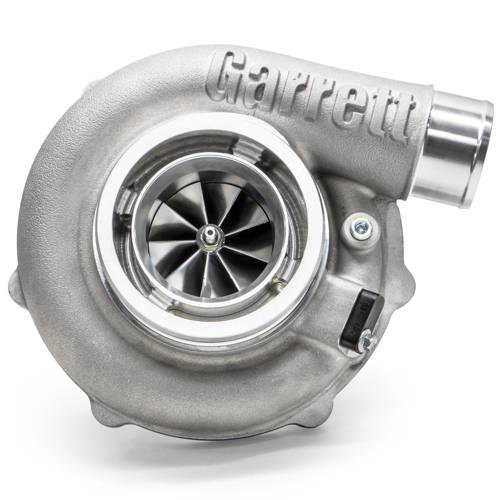

Garrett® G35-900 Turbo Assembly Kit

Garrett® G35-900 Turbo Assembly Kit

Regular price $3,078.00 USD
Regular price $3,180.00 USD Sale price $3,078.00 USD
Sale Sold out
Garrett® G35-900 Turbo Assembly Kit

Product Features:
        • New G Series compressor wheel aerodynamics
        • Fully machined speed sensor and pressure ports
        • Standard and reverse rotation configurations available
        • Oil restrictor and water fittings included with purchase
        • One piece center housing and backplate for increased durability
        • 4 water jacket ports for customizable installation
        • Mar-M turbine wheel material rated up to 1050° C | 1922° F
        • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
        • Compressor Wheel Inducer: 62mm
        • Compressor Wheel Exducer: 76mm
        • Compressor Wheel Trim: 65
        • Compressor Housing A/R: 0.72
        • Turbine Wheel Inducer: 68mm
        • Turbine Wheel Exducer: 62mm
        • Turbine Wheel Trim: 84
        • Turbine Housing Inlet: 3 Inch O.D. V-Band
        • Turbine Housing Outlet: 3.55 inch O.D. V-Band
        • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
        • Includes two Coolant Fittings to -6AN
        • Includes Turbine Housing Inlet & Outlet V-Band Clamps
